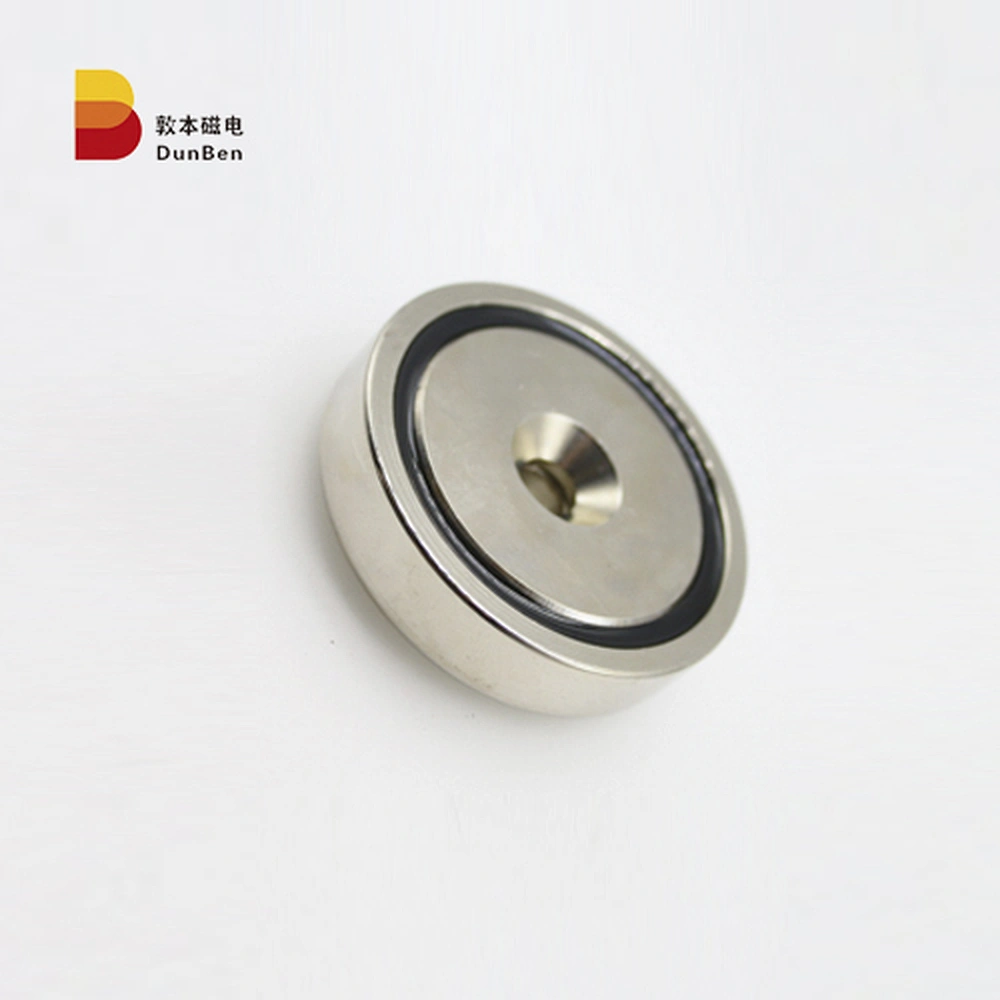

Strong Neodymium Round Base Magnet Mountable Magnet Pot Magnet With Countersunk Hole
db-203
Quantity
magnet holder means neodymium magnet with countersunk hole, it can be with a holder to holding something.Usually shape is round magnet with hole.
#neodymium magnet with countersunk hole#neodymium magnet ndfeb magnet#round magnet with hole#magnet countersunk#magnet holder#magnetic holding
#neodymium magnet with countersunk hole#neodymium magnet ndfeb magnet#round magnet with hole#magnet countersunk#magnet holder#magnetic holding

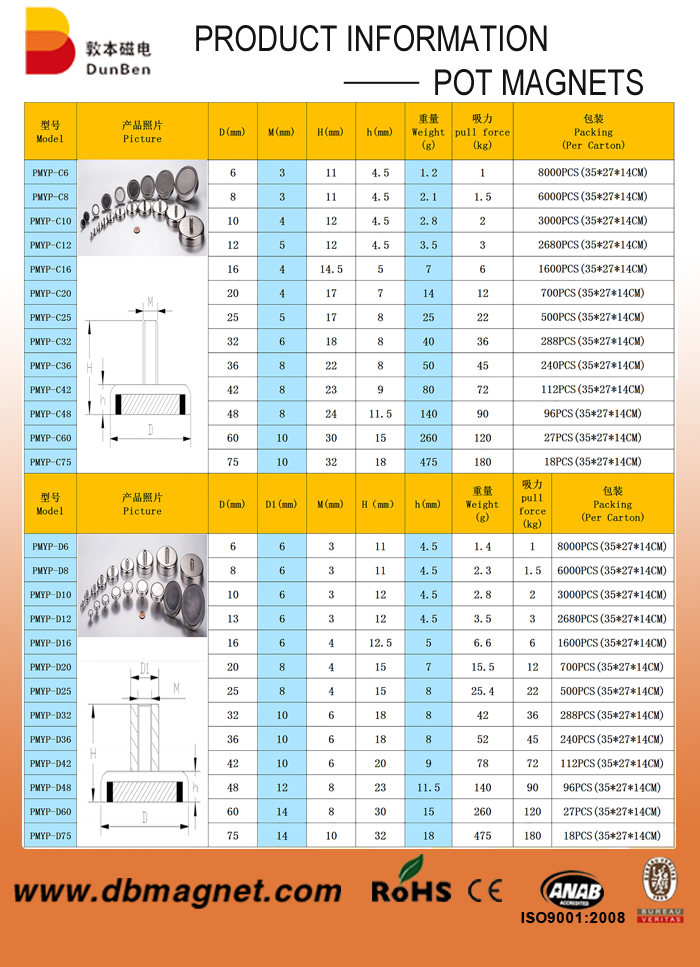

| Product Name: | PMB - D20 neodymium pot magnet key holder with eyelet |
| Product Materials: | NdFeB Magnets + Steel plate + M4 hook |
| Grade of Magnets: | N38 |
| Size of the products: | D=20; H1=6; H2=13; H3=32; M=4; d=8; |
| Working Temp.: | <=80℃ |
| Magnetic direction: | Magnets are sunken in to a steel plate. The north pole is on the center of the magnetic face and the south pole is on the outer edge around it. |
| Vertical pull force: | <=10kg |
| Testing method: | The value of the magnetic pull force has some thing to do with the thickness of the steel plate and pull speed. Our testing value is based on the thickness of the steel plate =10mm, and pull speed = 80mm/min.) Thus, different application will have different result. |
| Application: | Widely used in offices, schools, homes, warehouses and restaurants! |
